Announcing CB Electronics XPatch-32
CB Electronics introduces XPatch-32, designed by multi-award-winning designer Colin Broad. XPatch-32 is a 32x32 digitally controlled, fully analogue audio patch bay routing system for audio professionals and aimed at streamlining workflow in even the most demanding post or music studios.
The XPatch-32 system is controlled by our XPatch-32 program via USB, allowing for complex routings in seconds. Create, store and recall routings from sessions. Any input can be sent to multiple outputs. The XPatch-32 design is based on the A-Mon / I-Mon and shares the I/O and CPU cards, allowing for input and output muting and even gain control.

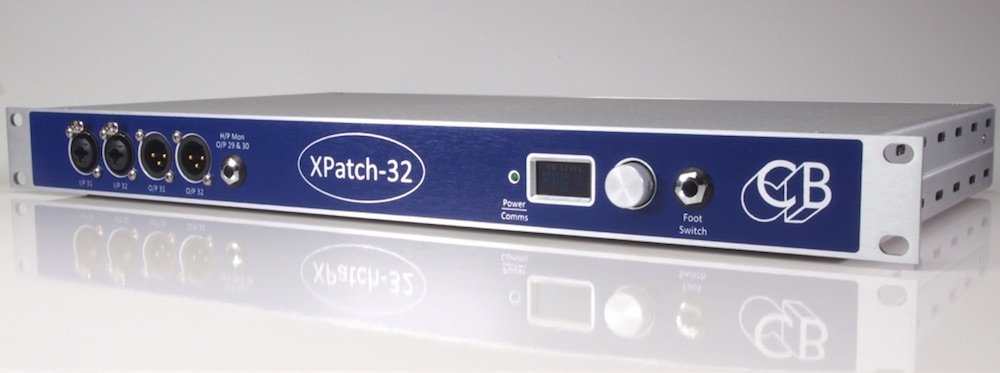

The front panel is equipped with 2x XLR combo connectors for input XLR line-level / ¼ inch jack DI input, plus 2 XLR output for quick auditioning of equipment. Also included are ¼ inch jack for headphone monitoring of inputs and outputs, OLED display and encoder with push button for function selection. In addition, there is a ¼ inch jack socket for a switch to step through snapshots (presets).
Once configured, XPatch-32 can operate independently of the XPatch-32 program and host computer via the front panel encoder or foot-switch. By switching between snapshots, the foot-switch enables the XPatch-32 to be used as a powerful studio or live performance tool for musicians.
In any studio, the XPatch-32 can make it quick and easy to use your favourite new and legacy hardware effect’s units in your mix. The XPatch-32 is a versatile stand-alone analogue routing/switching system for on-stage boutique instrument processing or amplifier selection.
Specification
- 32x32 CROSSPOINT ROUTING
- 2 INPUT COMBO XLR LINE LEVEL / ¼ INCH JACK DI INPUT
- 2 OUTPUT FRONT PANEL XLR CONNECTIONS
- FRONT PANEL HEADPHONE MONITORING
- CREATE, STORE & RECALL ROUTINGS
- ANY INPUT CAN CONNECT TO MULTIPLE OUTPUTS
- OSX & WINDOWS COMPATIBLE SOFTWARE
- SOFTWARE & FIRMWARE UPDATES VIA USB
- 8 CHANNELS OF METERING
- +4/-10 dBm LINE LEVEL SELECTION ON EVERY INPUT AND OUTPUT
- I/O ON DB-25 CONNECTORS - TASCAM FORMAT
- UNUSED I/O ARE MUTED TO MINIMISE CROSSTALK
- FOOT-SWITCH INPUT FOR SELECTION OF SNAPSHOTS (PRESETS)
- DESIGNED BY CB ELECTRONICS MULTI-AWARD-WINNING DESIGNER COLIN BROAD
- LOAD AND SAVE PREDEFINED SIGNAL PATHS
- CONNECT A TMC-1 OR TMC-2 TO USE AS A MONITOR CONTROLLER WITH ELECTRONIC PATCH
Release Date: Q4 2019
Price:
- XPatch-32 Introductory price £1,800 ex VAT
- XPatch-32 After Introductory price £2,000 ex VAT
Learn more: www.cbelectronics.co.uk
Contact:
CB ELECTRONICS,
LODDONSIDE, LANDS END HOUSE BEGGARS HILL ROAD, CHARVIL, BERKS, RG10 0UD,
UNITED KINGDOM
Phone: +44 (0)118 9320345
About CB Electronics
In 1994 Colin Broad received an Academy of Motion Picture Arts and Sciences Technical Achievement Award in the category of Sound for the design and development of EDL (Edit Decision Lister) which creates encoded timecode track and database during the initial transfer of the production sound "dailies"
- In 1994 Colin Broad was awarded the BKSTS Phil Berkley award for his work in video post production.
- In 1996 Colin Broad (CB Electronics) received the Satis-Fecit for the SR-4.
- In 2010 Colin Broad was made a Fellow of The Association of Motion Picture Sound (amps).
- In 2016 Colin Broad was awarded the Association of Motion Picture Sound Exceptional Contribution Award.
